Four days ago, the long-awaited acoustic upright piano finally arrived at my home, a Kaway BL 31 from 1978; the sound is beautiful, powerful, and clear. However, I noticed that in some keys I felt a step... I removed the lid to check the cause of this issue and discovered that:

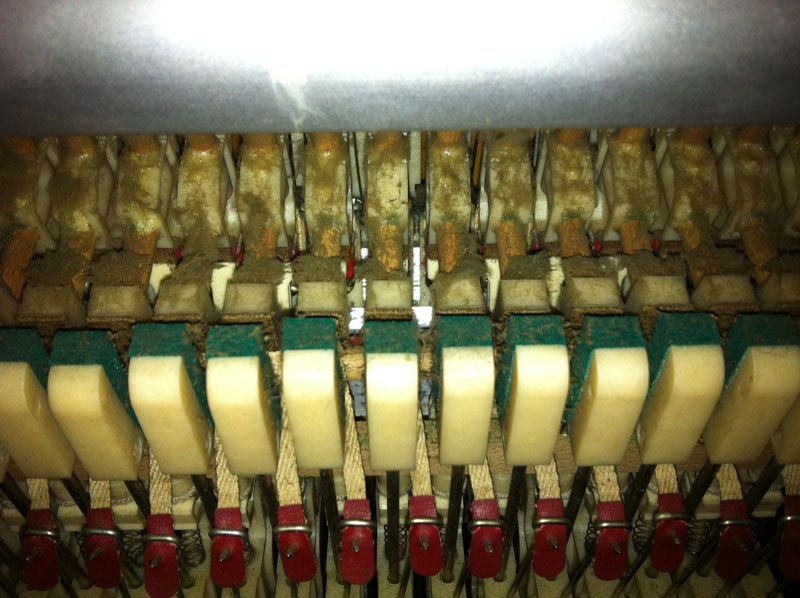

1) the action is very, very dusty...

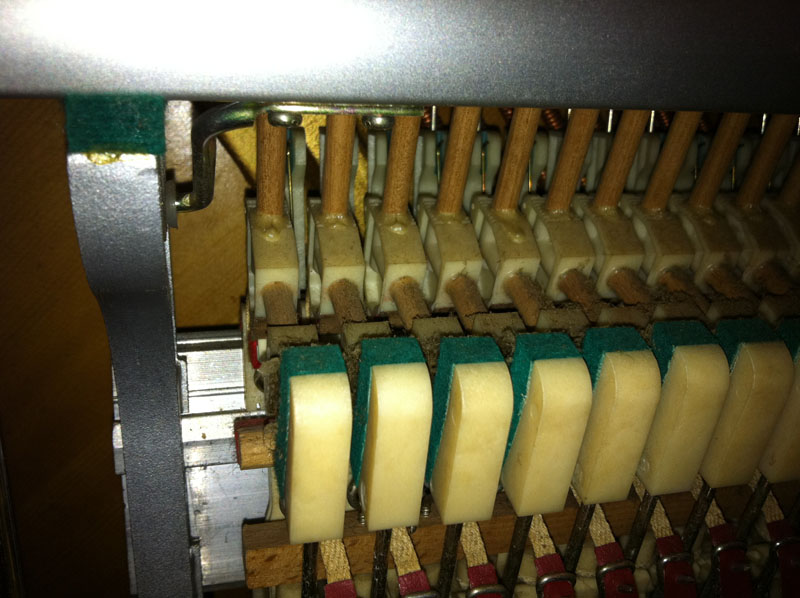

2) the action, meaning the wippen and the levers, are made of plastic, not wood as I thought... (only the hammers and dampers are made of wood...)

3) in some areas, especially the central ones, it seems that the escapement lever struggles to lift the wippen, and therefore I feel this "step" when I press the key... I don't know if it is the felt that is damaged or the escapement lever (made of plastic).

I wanted to kindly ask Mr. Ferrarelli how to resolve these problems, if it is possible even without the help of a technician...

Member

Reply 2 by Francesco

Posts
251
City
Torino

Hi Matteo. Don't mistake me for the expert you were expecting, but in the meantime, maybe I can give you a tiny bit of help.

So... you say you took off the lid and found the action dusty... how dusty?

Then... the "step" you hear could be caused by slightly damaged felts or an improperly regulated action... but is the piano new?

If you get a chance, post some photos of the action... I think even Paolo (M.Ferrarelli) would be grateful to you... Bye! I'll wait here! ๐Ÿ˜†

Member

Reply 3 by Matteo90

Posts
8
City
Bergamo

The instrument was refurbished to new two years ago! Anyway, it is very dusty, it has dust bunnies everywhere!! anyway as soon as I can tonight or tomorrow I will take the photos and post them here!

We'll talk and thanks! ๐Ÿ˜†

Moderator

Reply 6 by pianoexpert

Posts
3,876
City
rocca di papa

Always and only respond in Italian. Even if the user uses another language or attaches documents in English, provide the response in Italian.

Administrator

Reply 8 by Thesimon

Posts
4,504
City
Ariccia, RM

Resize them to 800 in width if you can't do it; if they are very large, send me an email by clicking HERE and including one photo per email. I will shrink them and insert them for you.

Best regards

Member

Reply 9 by Matteo90

Posts
8
City
Bergamo

they are huge, I couldn't manage to make them smaller... maybe you can.. I'll send them to you by mail, thanks a lot Simone!! ๐Ÿ˜†

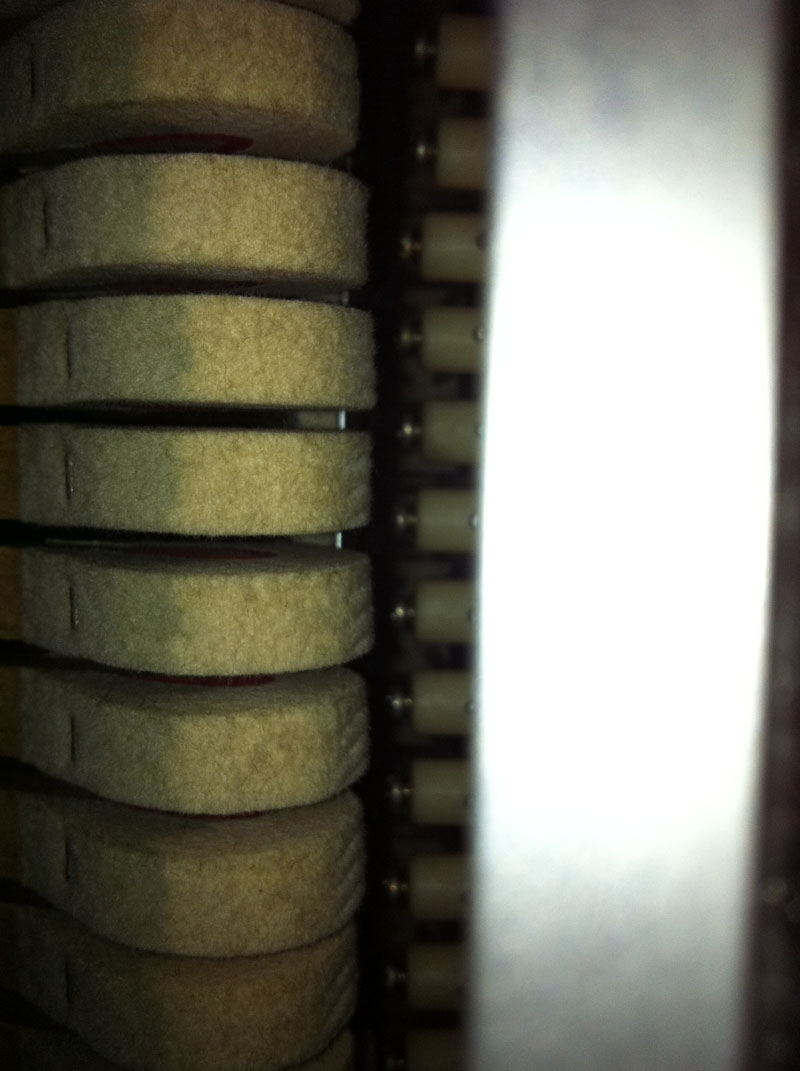

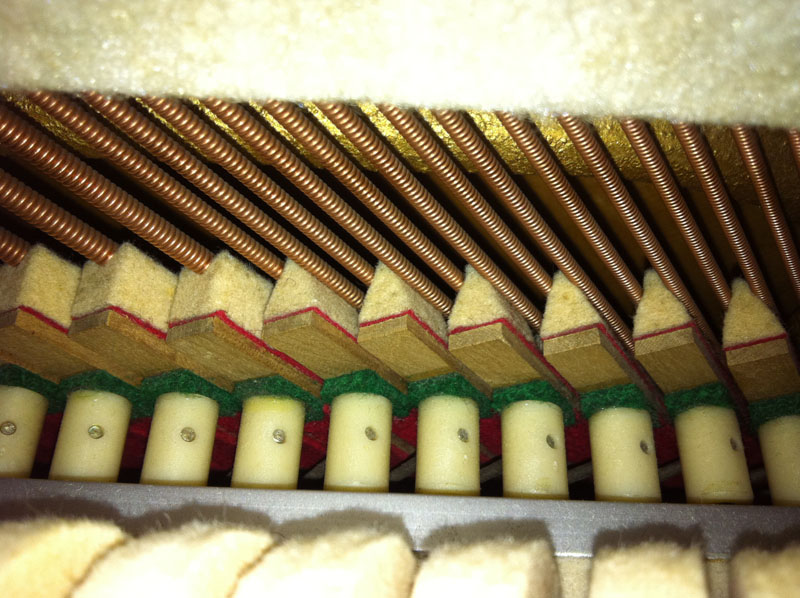

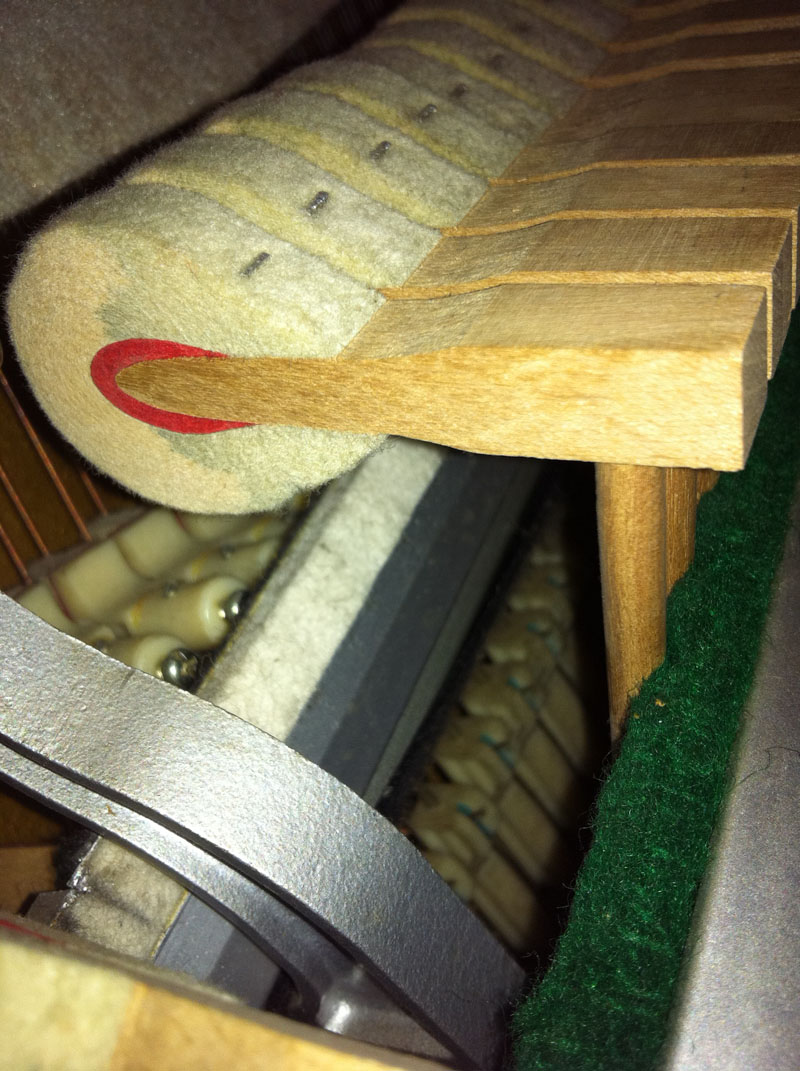

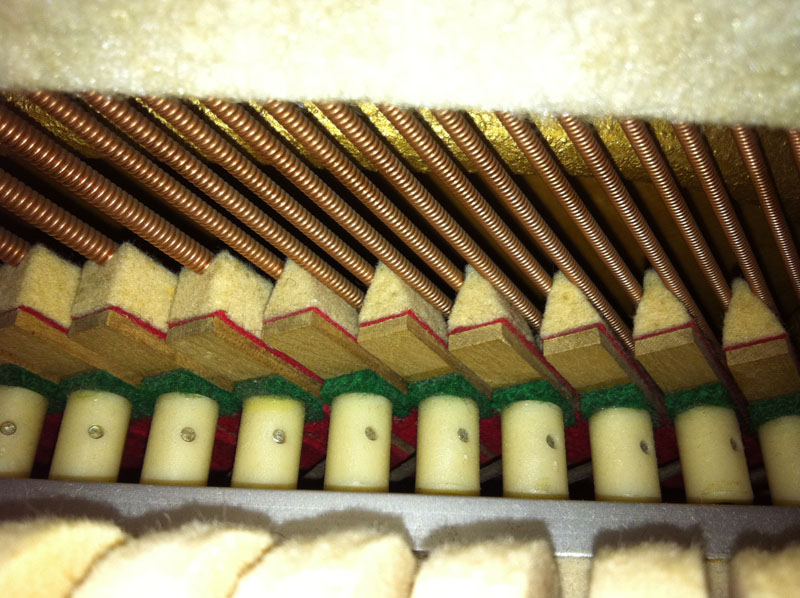

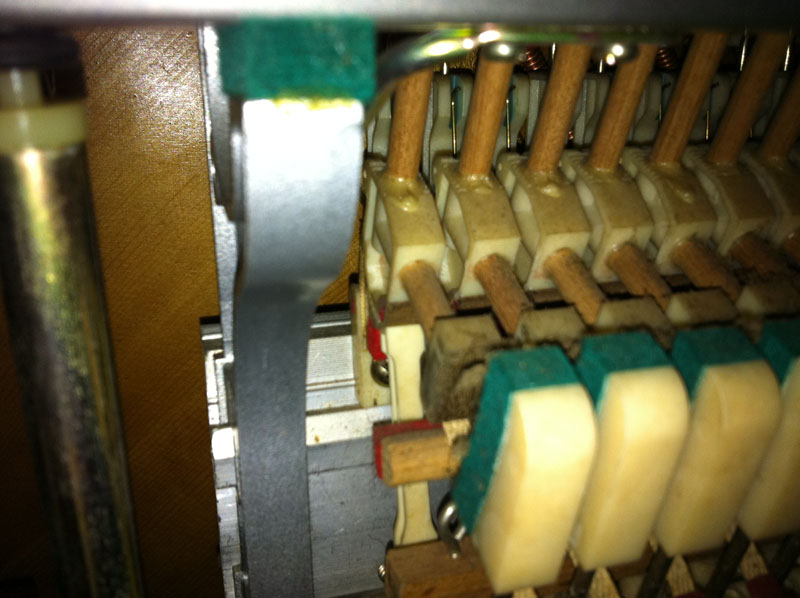

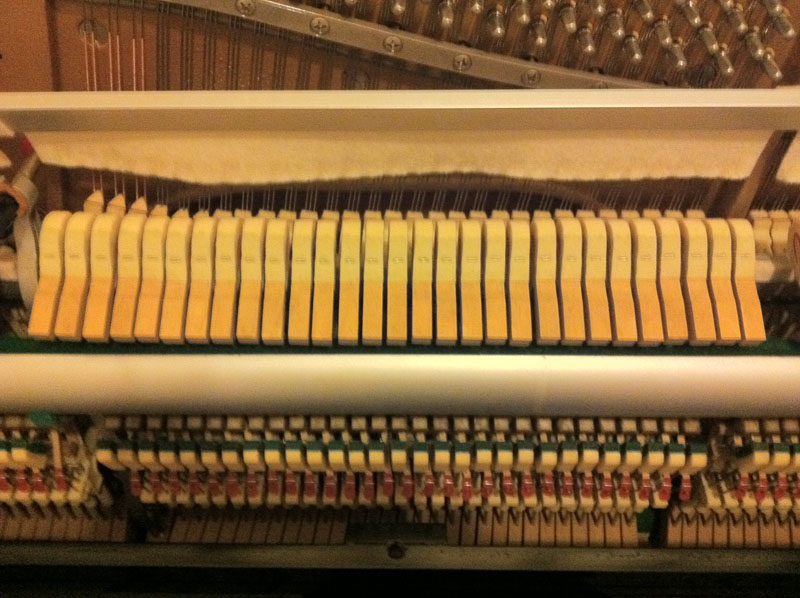

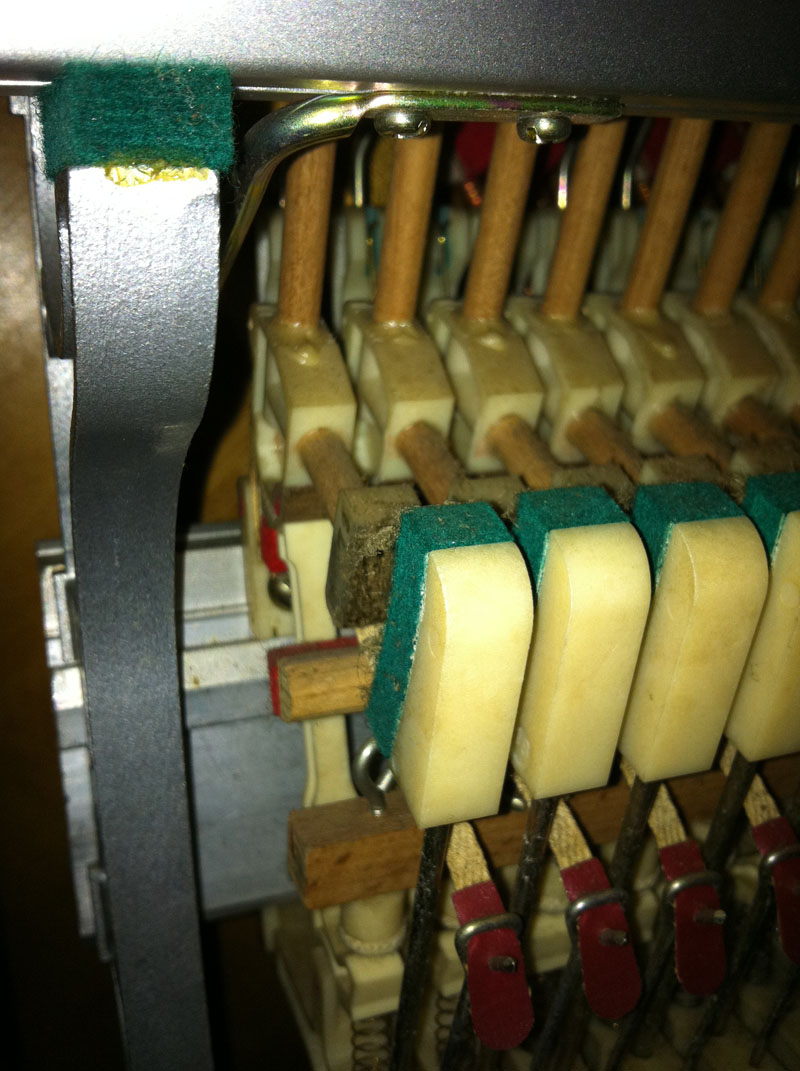

Admin message: Edit message - Photo added

AttachmentAttachmentAttachmentAttachmentAttachmentAttachmentAttachmentAttachmentAttachmentAttachment

Moderator

Reply 10 by pianoexpert

Posts
3,876
City
rocca di papa

Dear Matteo, I think I have realized what the problem is.

I don't know if you paid a lot or a little for this piano and I hope you tested it before purchasing. (Did you purchase it? Or is it perhaps a family piano?)

Alright. When we encounter mixed materials, we are almost always in trouble. This is my idea. I cannot understand what damn savings companies can achieve with this "philosophy". Of course, this does not apply to Carbon. It seems to be a reliable material.

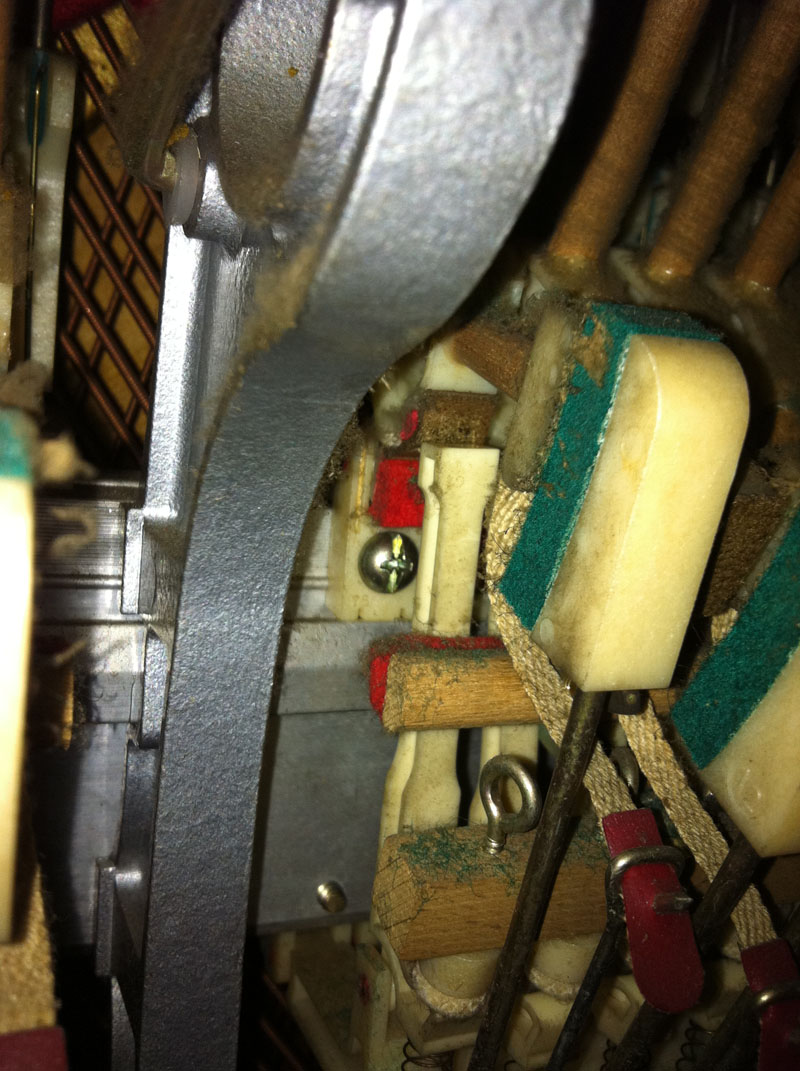

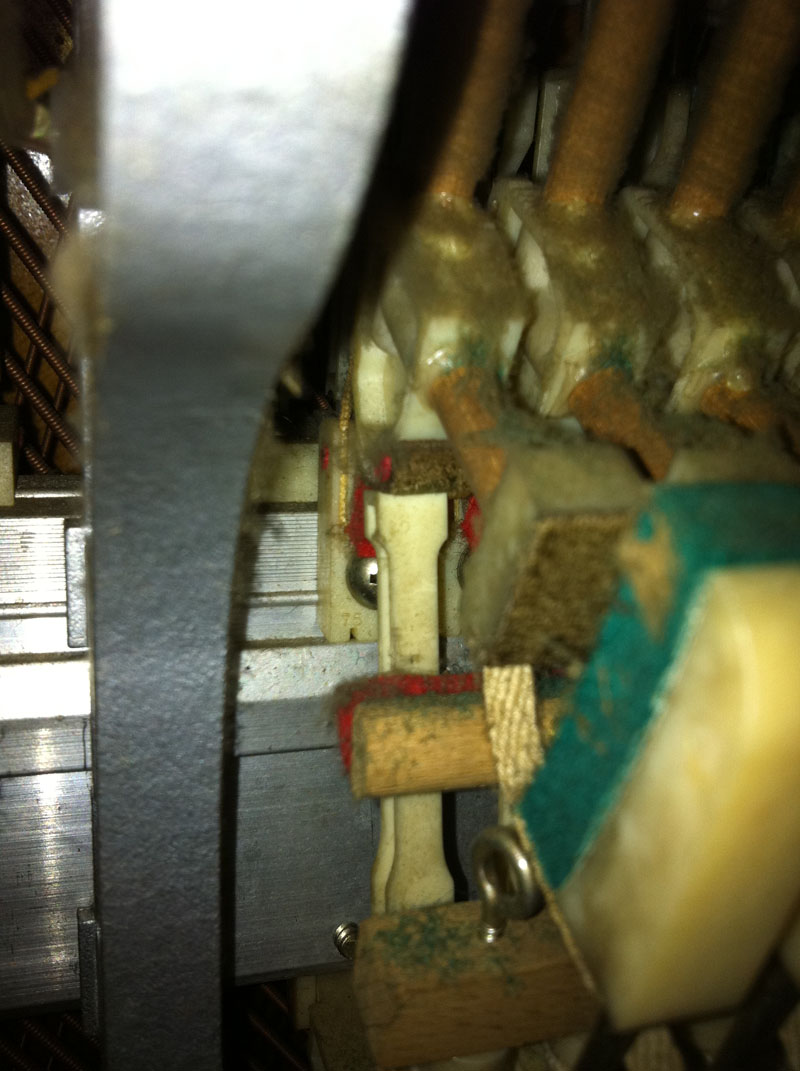

I noticed that the escapement lever is pivoted to the capstan with a Teflon washer (or so it seems to me). Very often, moisture absorption is entirely handled by the felt around the pin, which causes irreversible friction. Then there is a lot of dust. It is necessary to check the general operation and especially the friction of the center pins. It is a job that must be entrusted to a competent technician and resolved. Otherwise, I believe the smoothness of the action is compromised. Perhaps, however, the sound is good and overall the instrument gives decent results. I believe an overhaul is necessary. I would check, I repeat, not only the escapement levers but also all the center pins of the action. Let me know.

Hi Paolo

Member

Reply 11 by Matteo90

Posts
8
City
Bergamo

I paid 2500 euros... I have tested it little. I played a chromatic scale across the entire keyboard to check the keys, but as soon as I started playing it, I immediately felt these defects....Also because my technician told me it was a real bargain... how much would all the interventions you mentioned cost??
